C6000

Fully automated and suitable for a wide range of applications including commercial and industrial settings. They also offer higher security than rising arm barriers.

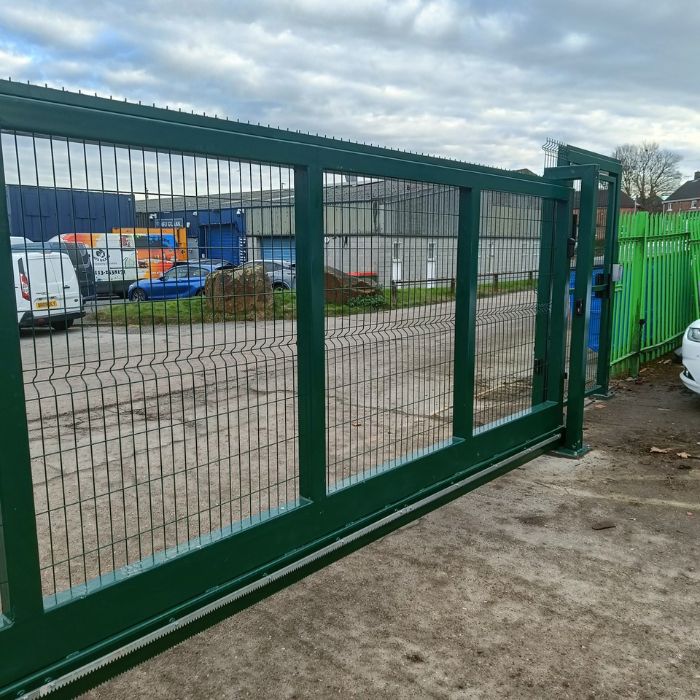

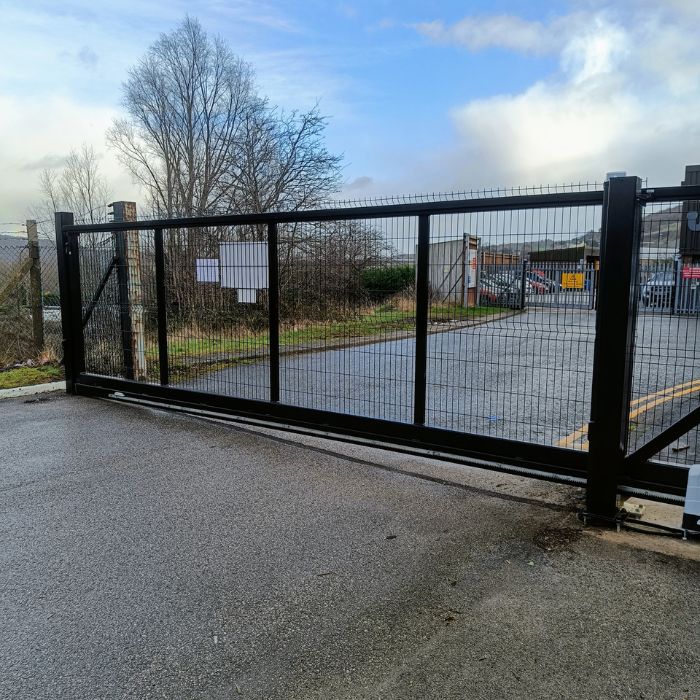

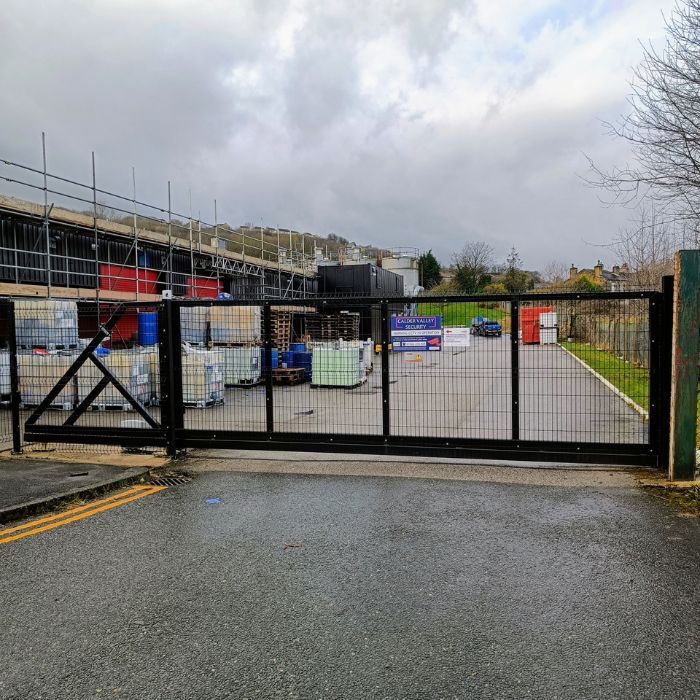

These Automatic Cantilever Sliding Gates are an ideal solution where space behind the gates is on an incline or restricted.

Sizes from 4000mm – 7000mm

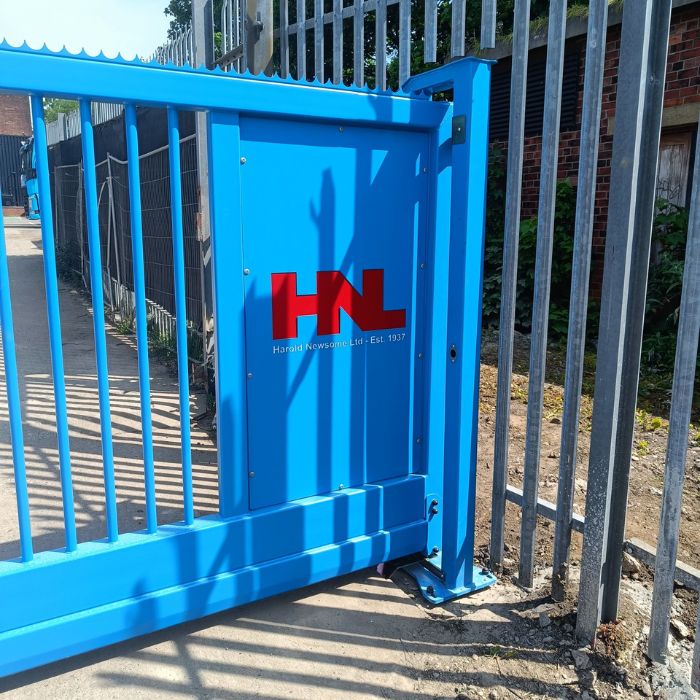

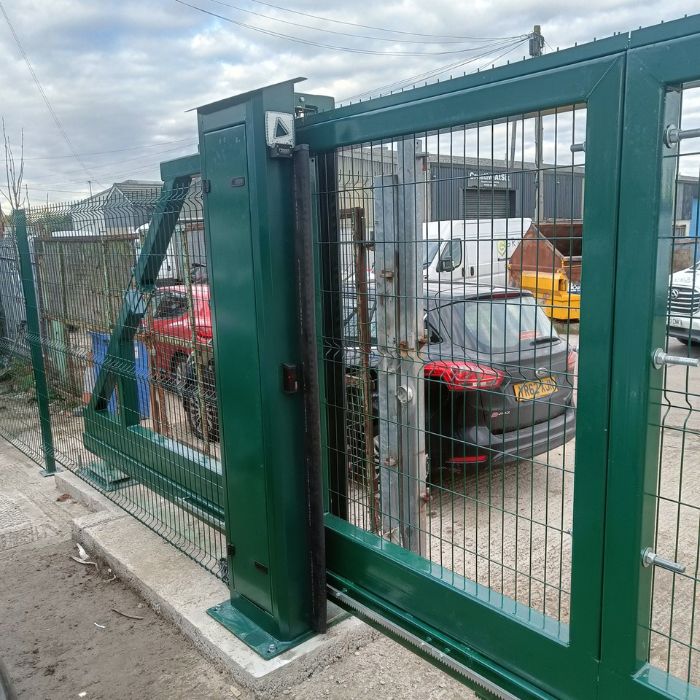

This automatic cantilever gate has a manual release mechanism concealed within the lockable housing unit, allowing manual control of the gate in the event of a power failure. To aid in the safety aspect of the automatic cantilevered sliding gate, the portal is fitted with dual-height photo-cells and rubber profile safety edges.

Install available: Yes
Safety Edges: 6 x Category 3
Safety Cells: Dual Height (cable not supplied)
Material: Steel
Manual Override: Yes
Duty Cycle: 100%
Motor Position: Built-in (Main Tower)
Warning Light: Yes
Emergency Stop Button: Yes
Keyswitch: Yes
Gate Type: Single or Double (BI-Parting Pair)
BS/EN 12453 Compliant
UKCA Approved
Default speed settings: set to pass a force test
Power Required: 230v, Single Phase, 50Hz, 10 Amp

CAD drawings are issued before manufacture to confirm the correct sizing, if you are unsure of how to measure the size please let one of the team know and we are happy to help.
