Fully automated and suitable for a wide range of applications including commercial and industrial settings. They also offer higher security than rising arm barriers.

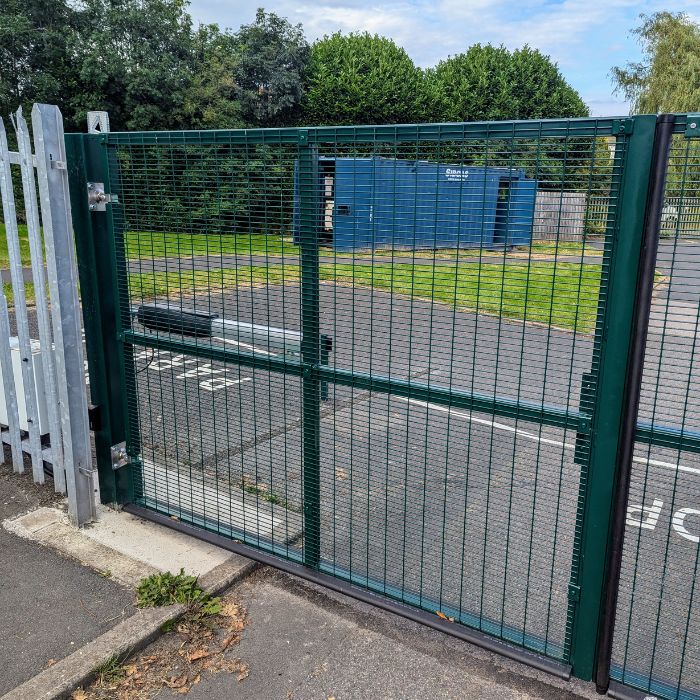

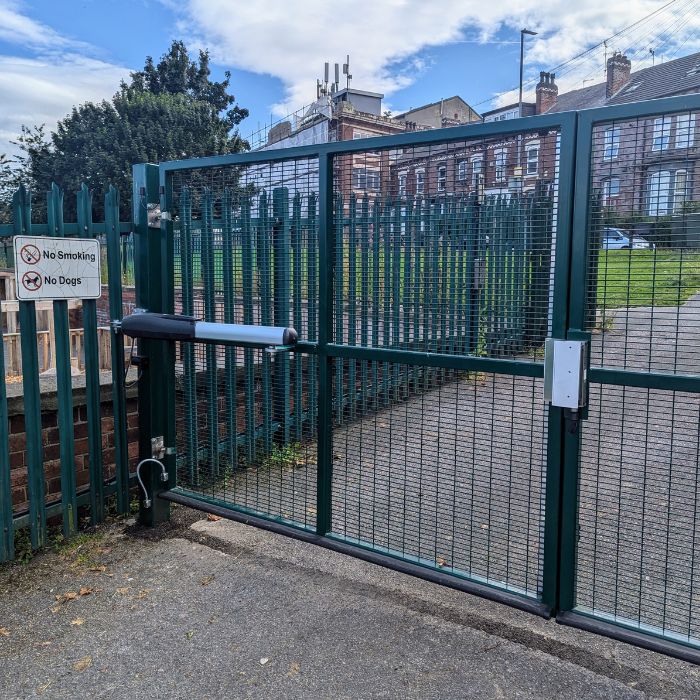

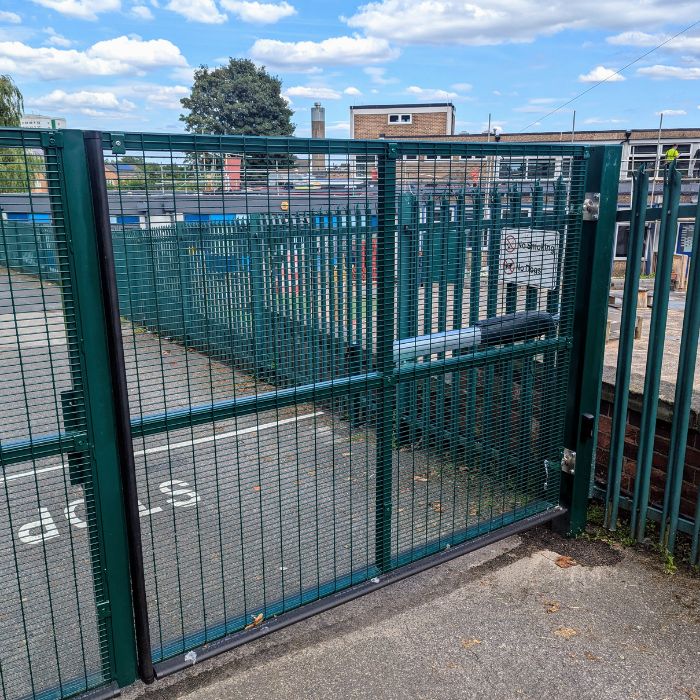

This automatic swing gate has a manual release mechanism concealed within the lockable housing unit, allowing manual control of the gate in the event of a power failure. To aid in the safety , the posts are fitted with photocells and the gates with 5 x safety edges.
Install available: Yes
Safety Edges: 5 x Category 3
Safety Cells: 1 set
Material: Steel
Manual Override: Yes
Locks: yes magnetic / electric drop bolt on request
Duty Cycle: 100%
Motor Position: Rear mounted
Warning Light: Yes
Emergency Stop Button: Yes
Keyswitch: Yes
Gate Type: Double leaf
BS/EN 12453 Compliant
UKCA Approved
Default speed settings: set to pass a force test
Power Required: 230v, Single Phase, 50Hz, 10 Amp
CAD drawings are issued before manufacture to confirm the correct sizing, if you are unsure of how to measure the size please let one of the team know and we are happy to help.
Frame 60mm x 60mm x 3.6mm SHS, 38mm round infill 120mm x 120mm x 5mm posts, base fix / concrete in. Galvanised with a PPC finish.
